A voltage drop calculator is an essential tool for electricians, engineers, and DIY enthusiasts designing electrical circuits. It computes the reduction in voltage as current flows through a wire, ensuring devices receive adequate power for safe and efficient operation. By inputting parameters like wire material (copper/aluminum), wire size (AWG/kcmil), current load (amps), circuit length (feet/meters), and phase type (single-phase/three-phase), users instantly determine voltage drop percentage. Excessive voltage drop can cause overheating, equipment malfunction, or energy waste—violating electrical codes like the NEC (limiting drops to 3% for branch circuits). Online calculators simplify complex formulas, offer material resistivity presets, and generate color-coded alerts for unsafe levels. Whether planning residential wiring, solar installations, or industrial systems, this tool prevents costly errors and ensures compliance with safety standards.

What is Voltage Drop Calculator?

A voltage drop calculator is a digital tool that quantifies energy loss in electrical conductors due to wire resistance. It answers critical questions: “Will my devices get enough power?” or “Is this wire size sufficient?” Users enter circuit specifics—wire gauge, material, length, current, and phase—and the calculator outputs voltage drop in volts or percentage. For example, a 100-foot copper wire carrying 20A might show a 2.1% drop, indicating safety. This tool is vital for troubleshooting flickering lights, motor underperformance, or code violations during inspections. Unlike manual math, it accounts for temperature effects and AC/DC differences, providing instant, accurate results. Accessible via web or mobile apps, it empowers professionals and homeowners to optimize wire selection, minimize energy costs, and enhance system reliability.

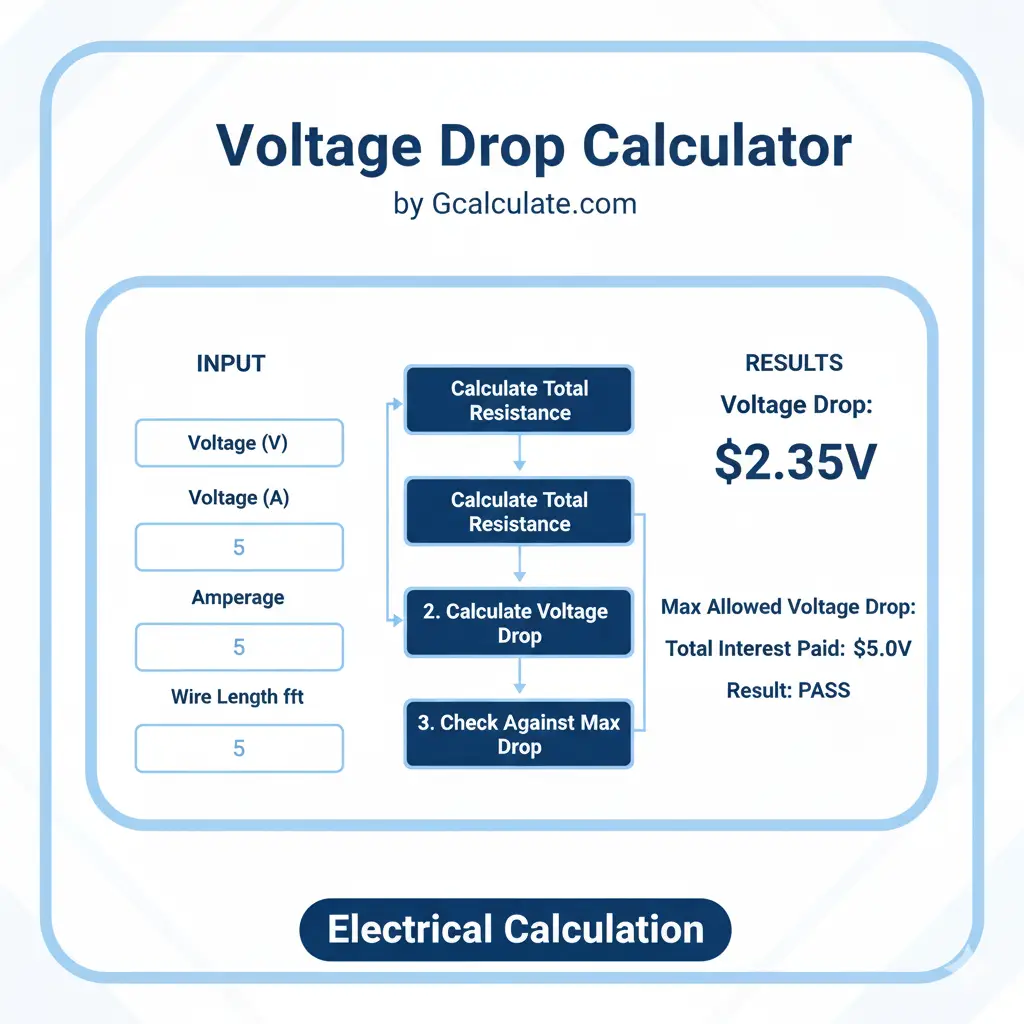

How to Use Voltage Drop Calculator?

Using a voltage drop calculator involves four simple steps:

Select Wire Material: Choose copper (common) or aluminum (lighter but higher resistance).
Enter Wire Size: Input gauge (e.g., 12 AWG) or area (kcmil). Larger wires reduce drop.
Specify Circuit Details: Add current (amps), one-way length (feet/meters), and phase (single/three-phase).
Calculate: Click “Compute” to view voltage drop (V) and percentage.
For instance, a 50-ft, 10 AWG copper wire at 30A in a 120V single-phase circuit shows ~1.8% drop—within safe limits. Advanced tools let you adjust temperature or compare multiple wire sizes. Always round up length estimates and verify results against NEC tables for compliance.

Voltage Drop Formula

The voltage drop formula varies by system type:

DC/Single-Phase AC:
$V_{d} = 1000 2 \times I \times L \times R$
Where $I$ = current (amps), $L$ = one-way length (ft), $R$ = resistance per 1,000 ft (Ω/kft).
Three-Phase AC:
$V_{d} = 1000 3 \times I \times L \times R$
Resistance ( $R$ ) depends on wire material and size (e.g., 12 AWG copper: ~1.98 Ω/kft). For example, a 100-ft copper wire (10 AWG, R=1.24 Ω/kft) at 25A (single-phase):
$V_{d} = 1000 2 \times 25 \times 100 \times 1.24 = 6.2 V$ (5.17% for 120V). Calculators automate this, using built-in resistivity tables for accuracy.

Wire Size Calculator

A wire size calculator determines the optimal conductor gauge to minimize voltage drop and prevent overheating. It cross-references current load, circuit length, material, and allowable drop percentage (typically 3% for power, 5% for lighting). For example, a 150-ft circuit with 40A load requires 3 AWG copper wire to stay under 3% drop. These tools integrate NEC ampacity tables, derating rules for temperature/conduit, and voltage drop formulas. Users input parameters, and the calculator recommends the smallest compliant wire size—balancing cost and safety. Essential for solar arrays, EV chargers, and subpanels, it ensures code compliance and energy efficiency. Many calculators also output maximum ampacity, short-circuit ratings, and conduit fill recommendations.

AC vs DC Voltage Drop

AC and DC voltage drop calculations differ due to alternating current’s impedance effects:

DC Circuits: Only resistance ( $R$ ) matters. Formula: $V_{d} = I \times R \times 1000 2 L$ .
AC Circuits: Impedance ( $Z$ ) includes resistance ( $R$ ) and reactance ( $X$ ). For single-phase: $V_{d} = 2 \times I \times (R cos ϕ + X sin ϕ) \times 1000 L$ , where $ϕ$ = phase angle.
Reactance increases with wire separation and frequency. AC drops are higher in long runs or large motors due to skin effect and inductive losses. Calculators handle both systems: DC uses pure resistance, AC factors in power factor (e.g., 0.85 for motors). For example, a 200-ft wire carrying 50A DC drops 4.8V, while the same AC circuit (0.9 PF) drops 5.2V. Always specify system type for accuracy.

Voltage Drop Calculator by Wire Material

Wire material critically affects voltage drop. Copper (low resistivity: 10.4 Ω·cmil/ft) outperforms aluminum (17 Ω·cmil/ft), reducing drop by ~40%. For example, a 100-ft, 8 AWG wire at 50A drops 2.3V with copper vs. 3.8V with aluminum. Aluminum requires larger gauges (e.g., 6 AWG instead of 8) for equivalent performance. Calculators include material presets and cost comparisons. Use copper for high-load/short runs; aluminum suits budget-friendly, long-distance projects (with anti-oxidation paste). NEC Table 310.16 provides ampacity adjustments for temperature.

Voltage Drop Calculator for Solar Panels

Solar systems demand precise voltage drop calculations to maximize energy harvest. A 2% drop in PV wiring can reduce output by 5–10%. Key inputs: PV array voltage (e.g., 48V DC), string current, wire length, and temperature derating (NEC 310.15). For a 200-ft run from roof to inverter (20A, 10 AWG copper), a 3.1% drop may require upgrading to 8 AWG. Calculators optimize wire size for MPPT efficiency and code compliance (NEC 690.8). Always factor in conduit fill and UV exposure for outdoor installations.

Maximum Circuit Length Calculator

This tool determines the maximum allowable wire length for a given voltage drop. Users enter wire size, material, current, and acceptable drop (e.g., 3%). For 12 AWG copper at 20A (120V), the max length is ~50 ft to stay under 3.6V drop. It’s ideal for planning circuit layouts without violating code. Formula: $L_{ma x} = 2 \times I \times R V ^{d} \times 1000$ (single-phase). Use this to avoid oversized wires or undersized runs in homes, RVs, or industrial plants.

Final Conclusion

Voltage drop calculators are indispensable for designing safe, efficient electrical systems. By converting complex physics into actionable insights, they prevent hazards like fires or equipment failure while optimizing energy use. Key tools—wire size calculators, AC/DC analyzers, and solar-specific versions—address diverse needs, from residential wiring to renewable energy. Understanding the voltage drop formula and material impacts empowers users to make informed decisions, ensuring compliance with NEC standards. Whether you’re an electrician troubleshooting voltage issues or a homeowner planning a circuit, these calculators eliminate guesswork, reduce costs, and enhance reliability. Always pair digital results with code tables and professional advice for critical installations. Embrace these tools to build electrical systems that deliver power precisely where it’s needed—safely and sustainably.
